4DOF MOTION SIMULATOR ACTUATOR KITS

NOTE:

1. These items are available on a pre-order basis. Delivery is estimated within 1–4 weeks, subject to stock availability.

2. The package includes U-brackets, bolts, and nuts required for installation.

3. All images shown are for illustration purposes only. Actual products may vary in appearance, specifications, or packaging without prior notice.

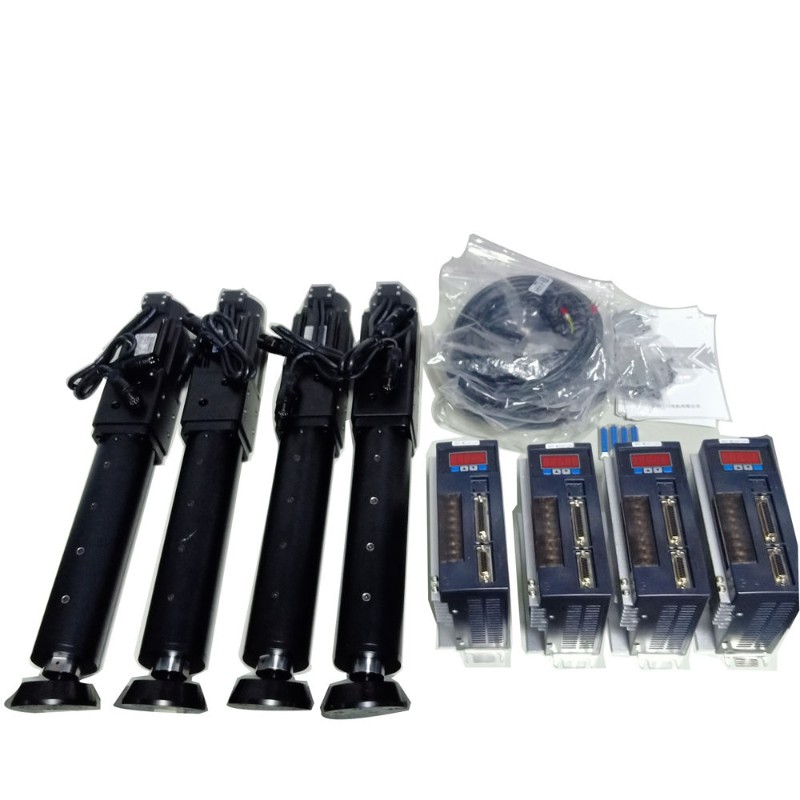

Designed for serious sim racers and simulation enthusiasts, this 4DOF (Four Degrees of Freedom) motion system delivers immersive and highly responsive feedback to replicate real-world vehicle dynamics.

Technical Specifications

• Motion Type: 4DOF Motion System (Stroke 100/150mm, 750W, 80ST, Leadscrew 1610, Max Load 127kg, Max Speed 500mm/s)

• Degrees of Freedom:

  • Heave (Vertical movement)

  • Pitch (Forward and backward tilt)

  • Roll (Side-to-side tilt)

  • Traction Loss (Rear-end yaw movement)

• Actuator Configuration: 4 × High-performance electric actuators

• Frame Compatibility: Suitable for aluminium profile simulator rigs and selected steel cockpit designs

• Control Method: Closed-loop motion control with encoder feedback

• Operating Voltage: 220–240V AC, 50/60Hz

• Motion Software Compatibility: Supports SimHub, SimTools, FlyPT Mover, and other compatible motion software

• Supported Sim Titles: Assetto Corsa, Assetto Corsa Competizione, iRacing, Automobilista 2, rFactor 2, Dirt Rally 2.0, EA WRC, and more

• Construction: Heavy-duty steel and aluminium components

• Recommended Payload: Up to 200 kg (driver and cockpit combined)

• Application: Sim racing, flight simulation, and professional training environments

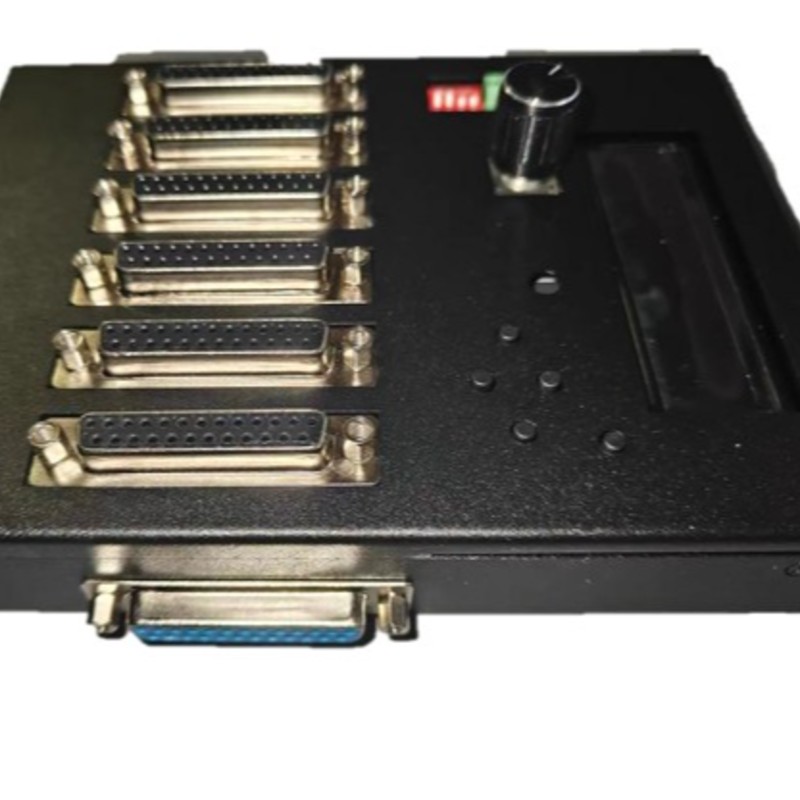

OEM Motion Simulator Controller

A professional-grade motion controller designed specifically for multi-axis motion simulator applications, offering precise and reliable real-time control.

Technical Specifications

• Controller Type: OEM Motion Simulator Controller

• Supported Motion Channels: Up to 4 motion axes

• Control Architecture: Dedicated real-time motion processing

• Feedback Support: Encoder-based closed-loop control

• Communication Interface: USB connection to host PC

• Software Compatibility: Compatible with SimHub, SimTools, FlyPT Mover, and supported motion interfaces

• Configuration Utility: User-friendly setup and tuning software

• Emergency Input: Dedicated Emergency Stop (E-Stop) input

• Protection Features: Communication monitoring and fault detection

• Firmware: Field-upgradable firmware

• Operating Voltage: 12–24V DC (depending on controller model)

• Enclosure: Industrial-grade PCB or enclosed controller housing

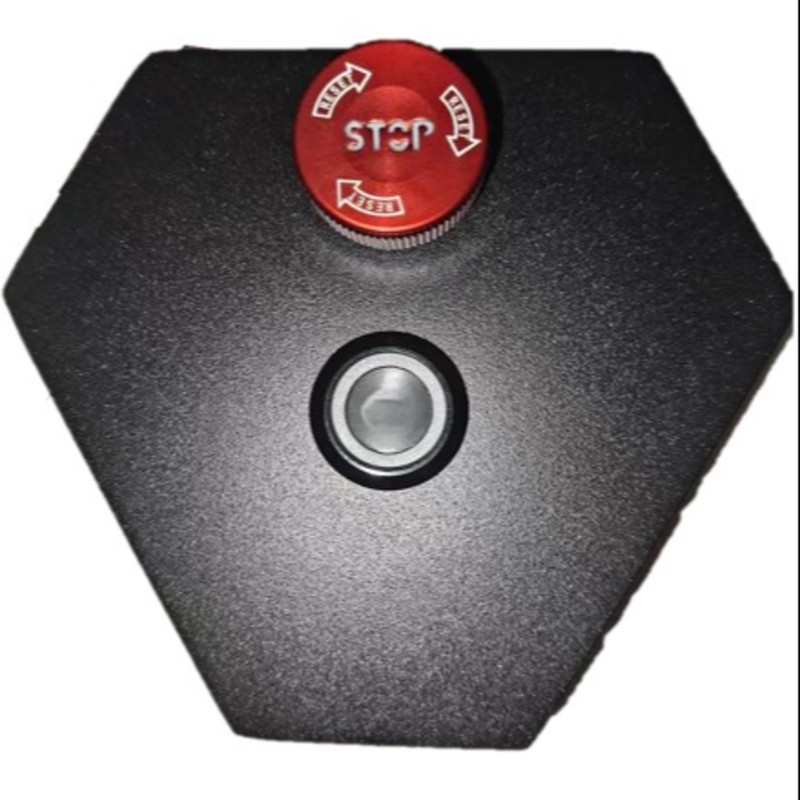

Emergency Kill Switch (E-Stop)

An essential safety component that allows the user to immediately disable the motion system during emergencies.

Technical Specifications

• Type: Mushroom Head Emergency Stop Switch

• Operation: Push-to-lock, twist-to-release mechanism

• Contact Configuration: Normally Closed (NC)

• Function: Instantly cuts the motion controller enable signal and halts actuator movement

• Mounting: Panel or bracket mounting

• Housing Material: High-impact industrial plastic

• Ingress Protection: IP-rated enclosure (model dependent)

• Operating Life: Designed for repeated emergency activations

• Compliance: Suitable for industrial and motion simulator safety applications

• Cable: Pre-wired harness included (depending on package)
